Description
Magnetic Track Joint Accessories for Straight and Corner Layouts

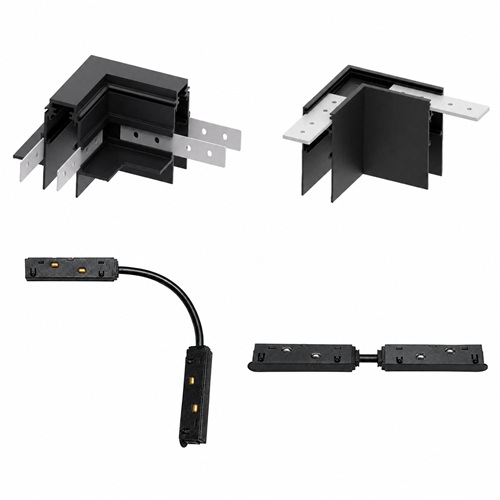

Joint accessories connect different sections of a magnetic track layout
A magnetic track joint connector helps create continuous track layouts where one track section meets another. Different accessories are required for straight runs and 90° corners. This allows the track arrangement to follow the intended ceiling layout without unnecessary breaks.
Always select the joint accessories according to your recessed magnetic track or surface mount magnetic track installation.
The magnetic track joint connector supports 90° track corners

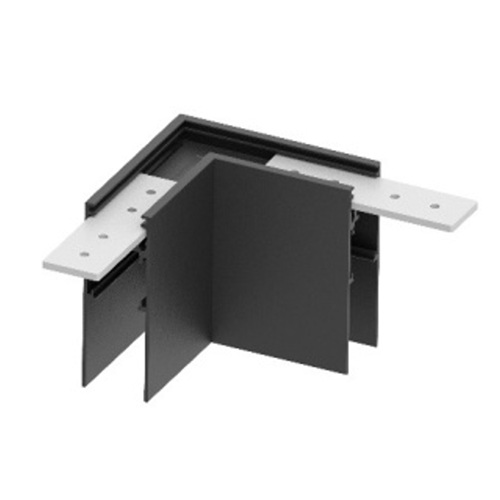

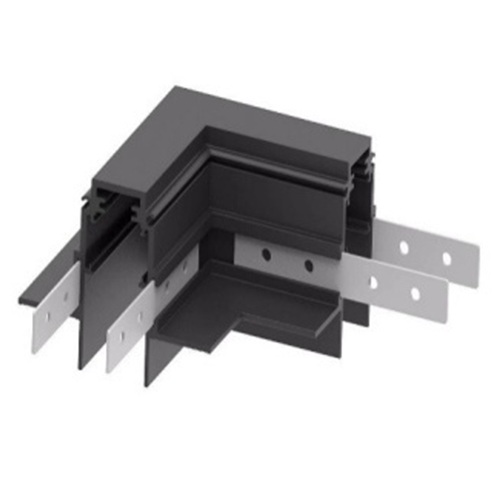

The recessed and surface mount L-joint connectors physically connect two matching tracks at a right angle. Choose the connector according to the track installation method. Recessed and surface-mounted track systems require their corresponding corner fittings.
Electrical joint modules maintain power between track sections

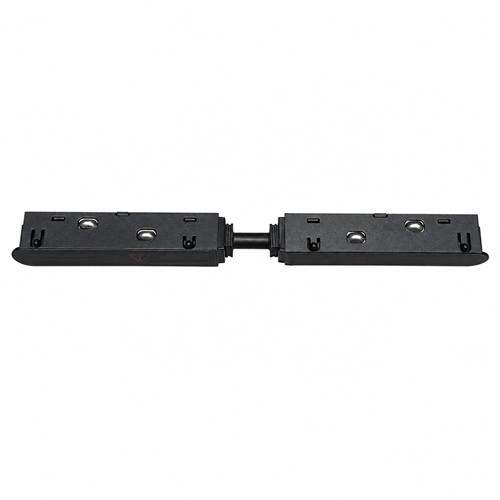

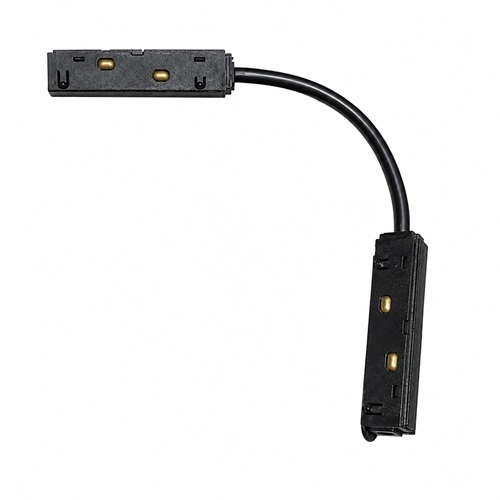

A magnetic track joint module performs a different function from the physical L-joint connector. The straight module transfers power between tracks joined end-to-end. The flexible L-joint module carries the electrical connection around a 90° change in direction.
FAQ
Do I need both an L-joint connector and a flexible L-joint module?
Yes, when the corner requires both physical connection and electrical continuity. The L-joint connector joins the two tracks mechanically at 90°. The flexible L-joint module transfers electrical power around the corner.
Do I need a straight joint module when connecting two tracks end-to-end?
Yes, if the second track must receive power through the first track. The straight joint module provides electrical continuity between the two connected sections.
A physical track connection alone should not be assumed to transfer power. If each track section has a separate power feed, the required configuration may differ.
